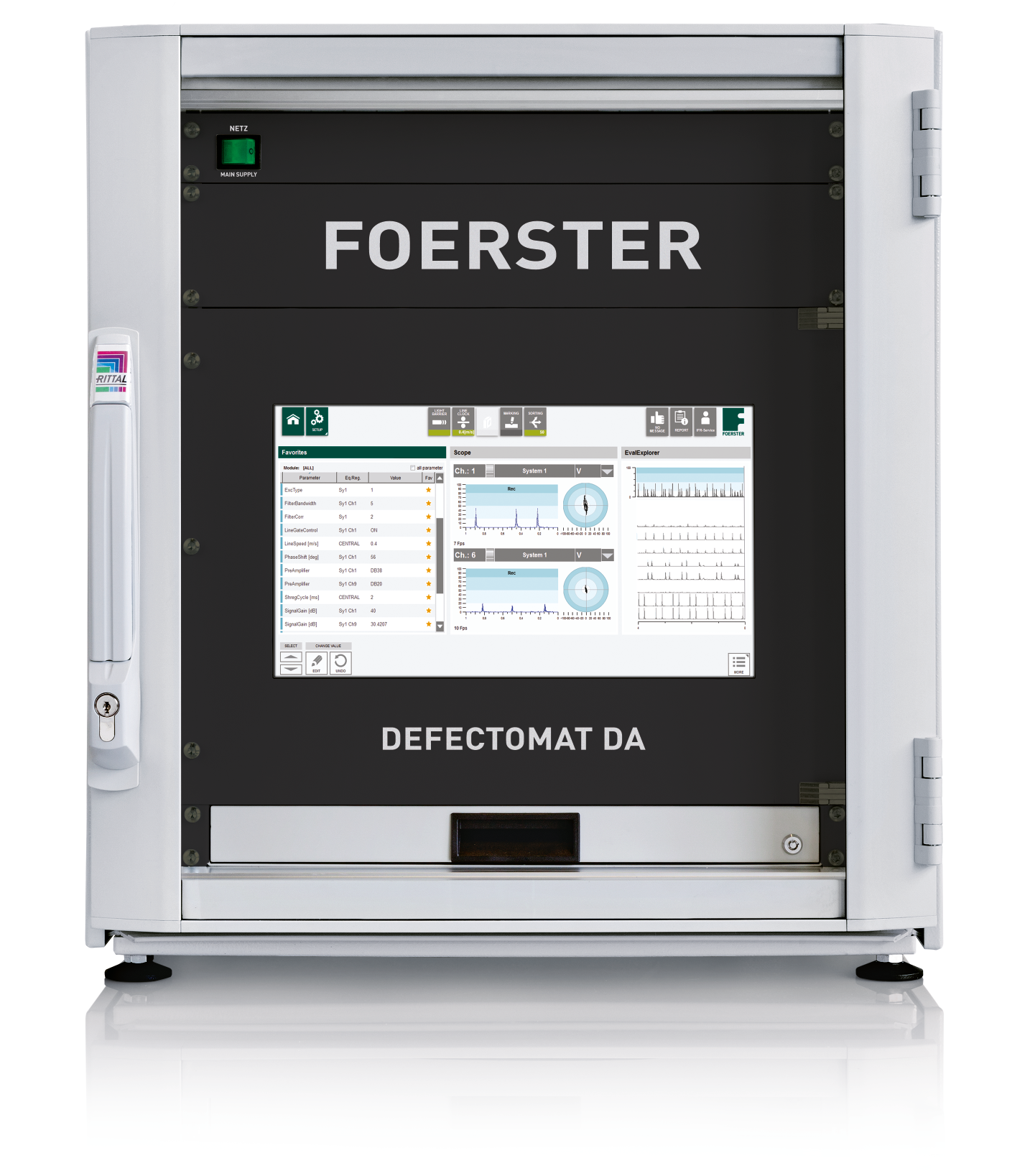

DEFECTOMAT DA
A new definition of premium class
The DEFECTOMAT DA evaluation electronic equipment by FOERSTER has a combination of key features that as a whole are designed to provide consistent productivity and process reliability. Fully digital and fitted with innovative operating software, this system with unequalled specifications combines the latest technology for non-destructive eddy current testing of tubes, rods, and wires. Experience the eddy current technology of the future today.
Your advantages at a glance
- • Compact and robust construction for industrial applications
- • Future-proof due to modular construction, ready for future expansion
- • Up to 256 measurement channels without multiplex operation
- • Option to connect up to 16 TEST SYSTEM DA modules (with 16 measurement channels each)
- • Fully digital evaluation electronic equipment
- • Excitation frequencies from 1 kHz to 1 MHz, endlessly adjustable
- • 126 dB amplification
- • Digital speed shift filter: Filters move along dynamically with the speed
- • High test speed up to 150 m/s
Technical Data
| Measurement channels: | Up to 16 TEST SYSTEM DA modules with 16 measurement channels each, optionally for differential probes, clearance probes, and Ferromat probes |
| Excitation frequencies: | 1 kHz – 1 MHz (endlessly adjustable) |
| Filtering process: | Digital speed shift filter; filters move along dynamically with the speed |
| Testing speed: | max. 150 m/s |
| Amplification: | max. dynamic range 126 dB |
| Sensor monitoring: | Broken wires, overload, automatic sensor recognition |
If you are interested in this product, please contact us!
