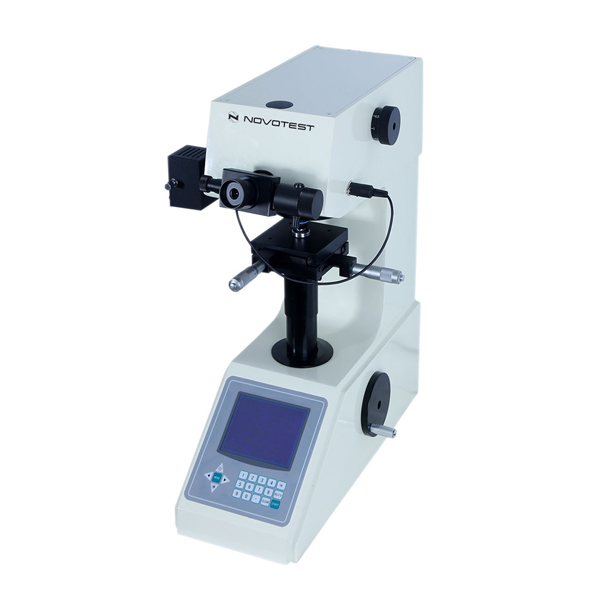

Digital Micro Vickers Hardness Tester NOVOTEST TB-MCV-1M implements direct Vickers method of hardness testing in accordance with ISO 6507-2 and ASTM E384.

Application

Micro Vickers Hardness Tester NOVOTEST TC-MCV-1M is designed to measure hardness value according to the micro Vickers and other scales.

Micro Vickers hardness tester is used for high precision testing of:

• – Carburized layer, ceramic, steel, non-ferrous metals;
• – Sheet, metal foil, plating, fine specimen, surface hardened layers;
• – Coatings, nitride layer;
• – Carburized layer and hardened layer;
• – Parallel surfaces;
• – Thin and small objects, when use of other hardness testers is impossible.

Description

NOVOTEST TC-MCV-1M is the model with manual data input from measuring microscope and manual turret.

Hardness tester has a large LCD display with easy operating menu.

The device is equipped with built-in printer.

NOVOTEST TC-MCV-1M has optical microscope for measuring the obtained diagonals of the imprints.  Hardness values are calculated fully automatically, no manual tables are used. Operator see ready hardness value on LCD screen.

Hardness tester have the following function such as automatic hardness calculation, storage, display, print and conversion hardness results to other scales.

This machine can be used as metallographic microscope tissue, when it can match with computer, install the CCD camera and PC software. The hardness tester can become micro hardness meter using image processing. Its function is very powerful, which is the ideal test instrument nowadays.
