JME PIPELINE CRAWLER SPARES KIT, 10CR2 CRAWLER KIT

This package contains an essential set of hand tools which allow the construction, set-up and configuration of the crawler to be undertaken. In addition to this the hand tools also allow a trained JME service engineer the ability disassemble the system to an extent that provides access to internal PCB’s contained within the package.

With the transition of the JME’s 10CR2 crawler system to micro-processor control the spares package for these systems have been reviewed to reflect this new technology. With the transition to surface mounted control systems the new JME spares kit comes with a complete set of replacement PCB’s for the crawler system. When used in conjunction with the new JME Crawler Test Box the engineer can simply diagnose the nature of any failure within the unit and swap out any defective PCB restoring the crawler to operation quickly and efficiently. Once a PCB is used within a repair we would recommend that a replacement is ordered so the spares package is complete at all times in the event any components are required in the future. With end of pipe and water sensors being standard equipment on the next generation of 10CR2 crawlers there are replacement units included within this package.

This spares package shows a real change in how the crawler is maintained within the field. We have maximised the opportunity that the step change in electronics have presented us with. Simple plug and play parts combined with easy diagnosis and access will provide additional peace of mind to the operators and ensure not costly downtime is encountered with these systems.

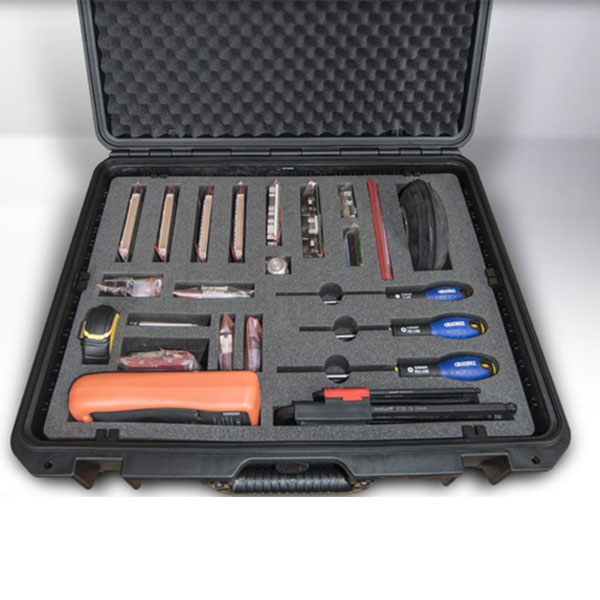

Example of Spares Kit Contents: 10CR2 Crawler Kit

• • TENMA 72-2590 MULTIMETER INC 9V BATTERY and TEST LEADS
• • BALL ENDED HEX KEYS METRIC SET
• • BRITOOL EXPERT FLAT HEAD SCREWDRIVER
• • BRITOOL EXPERT POZI1 HEAD SCREWDRIVER
• • BRITOOL EXPERT POZI2 HEAD SCREWDRIVER
• • STANLEY TYLON 3 METER TAPE MEASURE
• • ANTENNA 2.4GHZ BLACK 3.2dBi R-SMA
• • M4X10MM CROSS RECESSED L.P HEAD
• • M3X8MM CROSS RECESSED L.P HEAD
• • M3X10MM CSK SLOT BZP
• • M3X6MM POZI PAN MACHINE SCREW A2
• • M4X10MM CAP SCREW BZP
• • M3X12MM REFORM SCREW
• • ANTISURGE FUSE 3.15A 5X20MM T
• • ANTISURGE FUSE 10A 6.3X32MM T
• • ANTISURGE FUSE 5A 5X20MM T
• • ANTISURGE FUSE 15A 32MM T
• • MAXI FUSE 50A
• • MAXI FUSE 70A
• • CR2 THERMAL PAD
• • CR2 REAR BUTTON ASSEMBLY
• • CR2 REAR ENCLOSURE PCB
• • CR2 DISPLAY PCB
• • CR2 E-BOX INTERFACE PCB ELMO SERIAL
• • CR2 E-BOX LOGIC PCB
• • CR2 E-BOX WIRELESS RECEIVER PCB
• • CR2 E-BOX DETECTOR/ELECTRONICS PCB
• • CR2 E-BOX 24V POWER PCB
• • CR2 E-BOX 15V POWER PCB
• • CR2 RECOVERY PCB
• • CR2 E-BOX SOUNDER PCB
• • CR2 WATER SENSOR
• • CR2 END OF PIPE SENSOR
• • 10CR2 CRAWLER CHASSIS SPARE WHEEL
