1076 Basic

1076 Basic

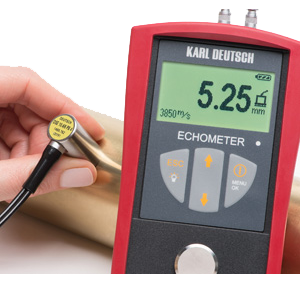

Karl Deutsch 1076 basic

Application
The innovative dual-use instrument measures wall thickness and sound velocities and convinces due to state-of-the-art manufacturing technology, modern design and an attractive pricing.

Thanks to its easy operation via a user-friendly plain text menu the ECHOMETER 1076 Basic is suitable for quality control on the shop floor as well as for measurement of containers or pipelines which are possibly corroded inside.
The measuring range for the ECHOMETER 1076 Basic covers 0.5 to 400 mm wall thickness (depending on the probe). For the measurement of the sound velocity, all materials between 100 to 20,000 m/s can be inspected.

Probes

The ECHOMETER 1076 Basic uses TR probes. In addition to the standard probe for the most common wall thickness values from 1.2 to 250 mm, a high resolution probe for thin-walled components from 0.5 to 25 mm and a low-frequency probe for wall thickness values up to 400 mm are available. The instrument identifies the connected probe type automatically when it is placed on the specimen or on the reference block, which is inserted in the front cover of the housing. Differences in sensitivity and characteristics are compensated automatically.

Menu
The user-friendly plain text menu is shown on a large, back-lit graphics display.

Versatile and robust

Compact dimensions of the gauge (13.1 cm x 8.1 cm x 3.2 cm, incl. rubber safety holster), a low power consumption for a long battery service time make the ECHOMETER 1076 Basic a versatile tool for everyday use. The splash-proof and robust instrument only weighs 150 g and even can be operated conveniently with one hand. Additional protection of the instrument is ensured by a rubber holster which also provides skid resistance during operation and which offers an integrated support for an angled positioning. A functional carrying case (left, example of equipment) is part of the scope of delivery.
If you are interested in this product, please contact us!
