Automated ultrasonic testing and quality assessment of plates

Comprehensive ultrasonic quality inspection in the production process

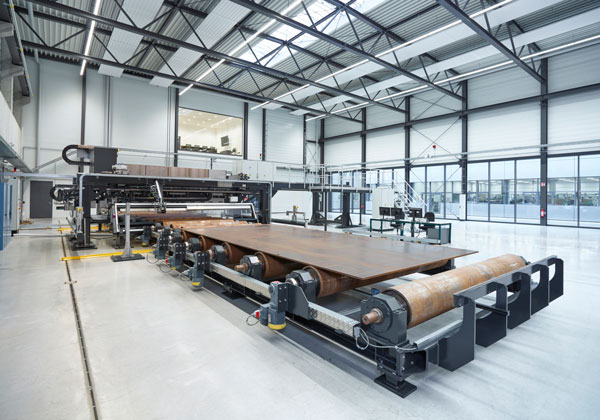

PLATEPROOF enables high-performance, non-destructive testing of your plates via ultrasound. It combines modern ultrasonic electronics – to detect flaws in the test material – with a robust and maintenance-friendly system design.

Everything about the system is made to withstand the harsh operating conditions that are typical of rolling mills.

Advantages at a glance

• ◘ High system availability – through the use of proven and robust modules with powerful modern components
• ◘ Testing in a single test run – through individual adaptation to the specific plate dimensions, whether operated inline or offline
• ◘ High test volume – due to fast test cycles for each plate. The short cycle times are achieved through an optimized control sequence using the latest Siemens control technology
• ◘ Highly sensitive flaw detection with good reproducibility – thanks to modern ultrasonic electronics
• ◘ Automatic quality assessment of the plates, as well as logging by the evaluation software, according to official or individually defined test standards
• ◘ Re-evaluation of plates – based on stored test data
